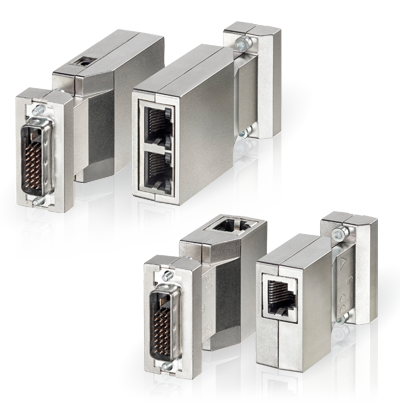

DVI Transmission Link
Digital graphics interconnection enables data transmission of high-quality video data of up to 36 meters with no quality loss. Transmitting the data over an Ethernet cable allows robust handling and simple setup, and the cables can be easily run through small conduits and holes.
2 items
- Diagnostic
- Clinical Review
- Digital Mammography
- Surgical
- Quality Control
- Features
- Specifications
- Documents
- Graphics Boards
- QC Software & Tools Accessories
- Lossless long-distance transmission of images.
- No additional driver software needed.
- Easy installation.
Model Variations |
TDL3600-QL: Quad Link, 36m TDL3600-DL: Dual Link, 36m TDL3600-SL: Single Link, 36m TDL2300-SL: Single Link, 23m |
---|---|
Cabinet Color | Silver |
Interface Specifications | |
Input Terminals |
TDL3600-QL: DVI-D (dual link) x 2 TDL3600-DL: DVI-D (dual link) x 1 TDL3600-SL / TDL2300-SL: DVI-D x 1 |
Input Performance | Transmitter module at PC side (DVI-D - RJ45), Ethernet cable (RJ45 - RJ45), Receiver module at monitor side (RJ45 - DVI-D) |
Output Terminals |
TDL3600-QL: DVI-D (dual link) x 2 TDL3600-DL: DVI-D (dual link) x 1 TDL3600-SL / TDL2300-SL: DVI-D x 1 |
Output Performance |
TDL3600-QL: 3840 x 2160 TDL3600-DL: 2560 x 1600 TDL3600-SL / TDL2300-SL: 1920 x 1200 |
Power | |
Power Requirements |
PC side: through DVI interface Monitor side: 5 V support from monitor Optional: 5 V external power supply |
Certifications & Standards (Please contact the EIZO subsidiary or distributor in your country for the latest information.) | IEC/EN60601-1 (3rd edition), IEC/EN60601-1 (2nd edition), CAN/CSA C22.2 No. 601-1 M90, CAN/CSA No. 60601-1-08, UL60601-1, EN60601-1-2 Class B, FCC-A, RoHS, China RoHS, WEEE |
Supplied Accessories |
TDL3600-QL: Transmitter x 2, Receiver x 2, mounting set for LX600W/LS560W, mounting set for LMM56800/LMM0802, 36 m cable x 4,
TDL3600-DL: Transmitter, Receiver, 36 m cable x 2, external power supply, TDL3600-SL: Transmitter, Receiver, 36 m cable, external power supply, TDL2300-SL: Transmitter, Receiver, 23 m cable, external power supply, Utility Disk (user's manual) |
Warranty | Two Years |
Dimension Drawing | JPG |
Brochures
Manuals
Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.
Languages
Document | Language | Size | Download |
---|---|---|---|
TDL3600 / TDL2300 User's Manual | English | 1.52 MB | |
TDL3600 / TDL2300 User's Manual | German | 1.53 MB |
