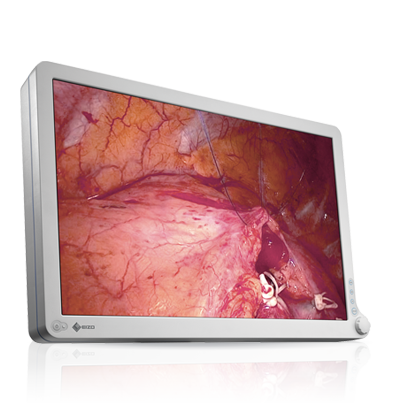

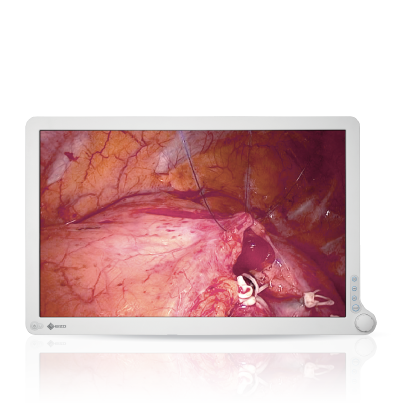

- EX240W
- Tweet
- Diagnostic
- Clinical Review
- Digital Mammography
- Surgical
- Quality Control
- Features
- Specifications
- Documents
- Graphics Boards
- QC Software & Tools Accessories
Wide Viewing Angles for Multiple People Use
Thanks to the wide viewing angles, images can be viewed simultaneously by several people with the highest quality reproduction and minimal color shift.
Colors to Fit the Physician's Preference
The color, hue, saturation, brightness, contrast, temperature and tones of the display can be adjusted to best fit the physician’s color preference.
Mirror Image for an Alternative Viewpoint
The mirror viewing function displays the inverse image of the original video signal to support the viewing direction of the surgical assistant. The Freeze, Zoom/Pan and Overscan functions are also available for ease of use during an operation.
Wide Range of Input and Output Support
EIZO offers multiple input signals to allow connections with both legacy and state-of-the-art endoscopic systems without the need of other optional devices or costs. With loop-through output support, the monitors are also ideally suited for multi-monitor integration or archiving in the operating room.
Sealed Design to Meet IP01
Its sealed cabinet design with no ventilation holes on top or sides are ideal for safe and clean integration in the operation room and it is IP01-rated to protect against ingress by dripping water.
Diagnostic Precision with Factory Adjustment
EIZO sets every shade of R, G, and B from 0 − 255 on the production line to ensure a gamma value of 2.2.
Arm Mountable VESA Compliance
VESA compliance to be attached to existing mounting accessories.
LCD Panel Protector for Easy Cleaning
The panel protector secures the screens from scratches, damages and liquids and alleviates cleaning and disinfection of the front surface.
Full High-Definition
With a native resolution of 1920 x 1200 / 1920 x 1080, the monitor can display original, full HD images in 1920 x 1080 resolution without blurring or distortion.
Noise Reduced and Image Sharpened
Identifies and reduces high pitched noise and recognizes and sharpens blurred areas to produce crisp, clear, and smooth images while maintaining fine image details.
Dual Picture Viewing Modes
With Picture-in-Picture (PiP), Picture-and-Picture (PaP), and Picture-over-Picture (PoP) functions, archived images or patient data can be reviewed simultaneously during an operation.
Safe Use with Antibacterial Monitor
Complies with ISO 22196 standards in regards to antimicrobial activity of antibacterial-treated monitor enclosures, to prevent biodeterioration and odor on the monitor.
Fanless Silent Design
Engineered to dissipate heat without a fan, thus keeping distracting noises and circulation of dust and germs out of the operating room while ensuring the controlled laminar airflow remains undisturbed within the room.
Customer Assurance with Medical Standards
RadiForce monitors meet the strictest medical, safety, and EMC emission standards.
| Cabinet Color | Light Gray |
|---|---|
| Panel | |
| Type | TFT Color LCD Panel (IPS) |
| Backlight | CCFL |
| Size | 61 cm / 24" (611 mm diagonal) |
| Native Resolution | 1920 x 1200 (16:10 aspect ratio) |
| Display Size (H x V) | 518.4 x 324 mm |
| Pixel Pitch | 0.270 x 0.270 mm |
| Display Colors | 8-bit colors: 16.77 million colors |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 280 cd/m2 |
| Contrast Ratio (typical) | 700:1 |
| Response Time (typical) | 13 ms (On/Off) |
| Video Signals | |
| Input Terminals | BNC (3G-SDI) x 2, BNC (Composite, SOG) x 1, BNC (Component) x 1, DVI-I x 1, D-Sub mini 15 pin (Separate Sync, Composite Sync, SoG) x 1, S-Video x 1 |
| Output Terminals (Loop Through) | BNC (3G-SDI) x 1, BNC (Composite, SoG) x 1, BNC (Component) x 1, S-Video x 1 |
| Analog Scanning Frequency (H / V) | 31.47 - 79.98 kHz / 50 - 85 Hz |
| Power | |
| Power Requirements |
AC adapter: AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz
Monitor: DC 24 V, 6.25 A |
| Maximum Power Consumption | 110 W |
| Power Save Mode | Less than 27 W |
| Power Management |
Digital: DVI DMPM, Analog: VESA DPM
|
| Features & Functions | |
| OSD Languages | English, German, French, Japanese, Chinese, Korean |
| Physical Specifications | |
| Net Weight | 7.5 kg |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Degree of Protection | IP01 |
| Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) | CE (Medical Device Directive), EN 60601-1, UL 60601-1, VCCI-B, FCC-B, C-tick, RoHS, China RoHS, WEEE, CCC |
| Supplied Accessories | AC power cord, AC adapter, signal cable (DVI-D - DVI-D, D-Sub mini 15 pin - D-Sub mini 15 pin, S-Video - S-Video, BNC - BNC), 4 screws for mount option, user's manual |
| Warranty | 18 Months |
| Dimension Drawing | GIF |
