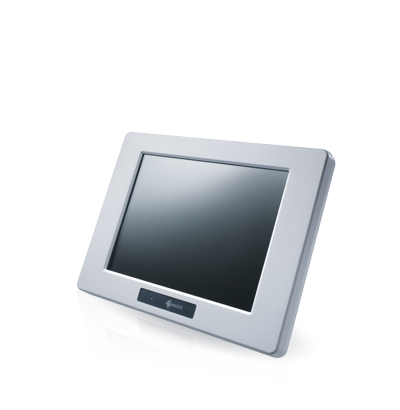

Touch Panel Console Monitor
The CID1000P offers a highly reliable platform with flexible mounting options. It is specially designed for use with the LMM56800 and LMM0802 as an operating monitor with touch functionality, enabling the quick and easy set up and recall of various screen layouts.
2 items
- Diagnostic
- Clinical Review
- Digital Mammography
- Surgical
- Quality Control
- Features
- Specifications
- Documents
- Graphics Boards
- QC Software & Tools Accessories
- Control interface for the operator to choose ideal layouts.
- 10.4-inch panel with touch function.
- Quick and easy set up.
| Cabinet Color | White |
|---|---|
| Panel |
Type: TFT Color LCD Panel Size: 10.4" Brightness: 230 cd/m2 (typical) |
| Interface Specifications | |
| Input Terminals | RS232 x 1 |
| Input Performance | 800 x 600 |
| Communication Connector | Ethernet x 2 |
| USB Ports | USB downstream x 2 |
| Power | |
| Power Requirements |
AC adapter: AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz
Monitor: 12 - 24 VDC |
| Physical Specifications | |
| Degree of Protection | IP65 for front, IP21 |
| Net Weight | 2.2 kg |
| Mechanical Adaption | VESA standard 75 x 75 mm |
| Certifications & Standards (Please contact the EIZO subsidiary or distributor in your country for the latest information.) | CE, cULus, EN60601-1 (3rd edition), FCC-B, EN55011-B, RoHS, China RoHS, WEEE |
| Supplied Accessories | AC power cord, AC adapter, Utility Disk (user's manual) |
| Warranty | Two Years |
| Dimension Drawing | JPG |
Brochures
 |
|
Manuals
Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| CID1000P User's manual | English | 1.14 MB |  |
Monitor Cleaning Kit
ScreenCleaner
- Keep your screen free from dust and fingerprints
- Includes pump spray and cloth
Mounting Bracket
FID1000
- Holder
